Technical Detail of Linear / Vertical Cross Belt Sorters

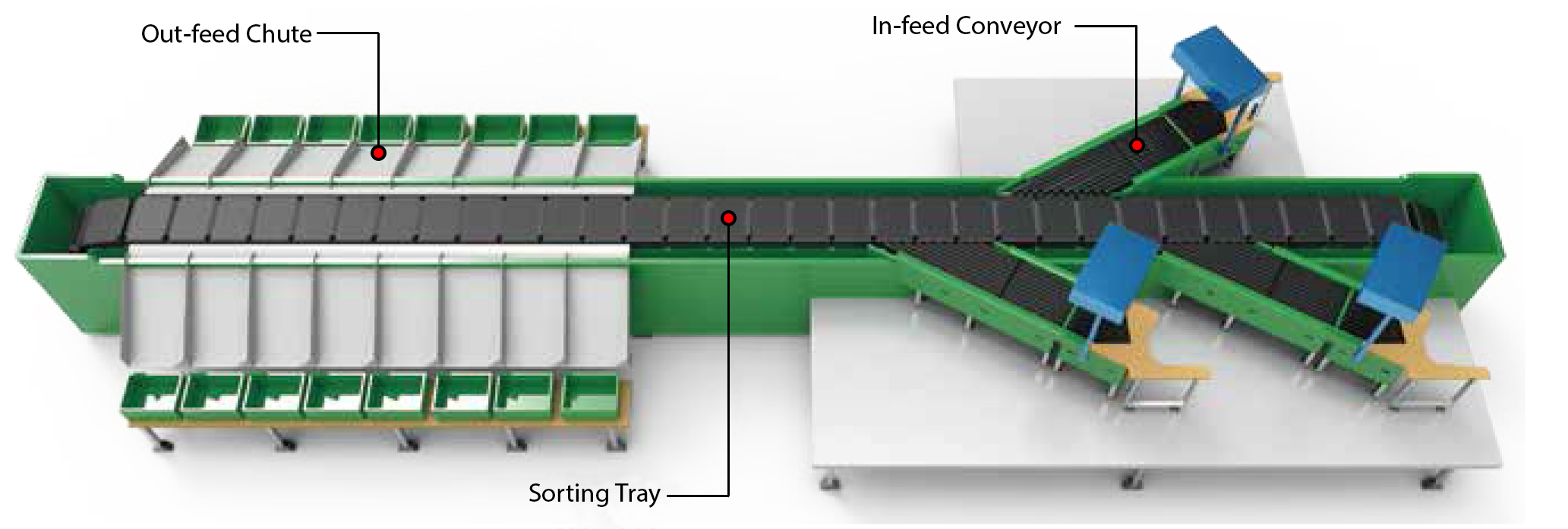

Vertical Cross Belt Sorter

  Type A Type B
Tray pitch 110mm 500mm, 600mm, 800mm
Tray length 400 ~ 1000mm 700mm ~ 1200mm
Tray width  1100mm  325-425-625
Tray type  Matching the number of trays according  to the size of goods One try with one piece item / Two trays with one piece item
System drive  SEW geared motor AC synchronous linear motor
Speed  < 1.2m/s 1.2m/s - 1.5m/s (optional)
In-feed mode Automatic / semi-automatic /  manual (optional)
System mode  1 ring loops 2-N logical sorting system (customized)

Note: The above are the company's existing standard equipment parameters, supporting non-standard customization design.
